Bissell Robot Vacuum Error Codes



To reduce the risk of electric shock, turn power switch off and disconnect plug from electrical outlet before performing maintenance or troubleshooting checks.

Bissell Robot Vacuum Cleaner – LED Error Code (power LED flashes red)

Error CodesSolution
E1The wheel is stuck. Remove vacuum from obstacles, and restart the power switch.
E2The top cover or dust bin is not installed properly. Install the top cover and dust bin properly. The unit will detect the error and fix automatically. If the unit does not fix automatically, turn the unit off and back on.
E3The bumper is stuck. Remove vacuum from obstacles. The unit will detect the error and fix automatically
E4The unit was lifted up from the floor. Put vacuum back on the floor.
E5The color of the floor is too dark Remove robot from the flooring. Use virtual wall to keep the robot off of the flooring.
E6The battery is not installed properly. Charging error. (Power switch is off) To install the battery properly, please refer to page 5 for battery installation, and turn on the power switch after installation is complete.
LoBattery Low: Battery needs to be charged. (Power LED turns Red)
Bissell Robot Vacuum Parts Meaning
Bissell Robot Vacuum Parts Meaning

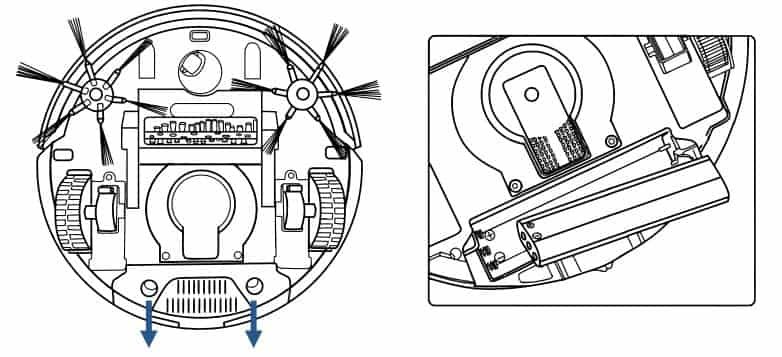

Battery Installation – Removal

Battery Installation - Removal
Battery Installation – Removal

Do Not Remove The Plastic Shrink Sleeve From The Battery Pack.

To install the battery: First, turn the power switch to the off position. Press on the two circles of the battery cover and slide the cover towards you and insert the battery.

Install the battery in the compartment, ensuring the +/- terminals of the battery match the +/- indicators in the battery compartment.

Cleaning the Sensors

After repeated use, dirt and dust can accumulate on the sensors of the vacuum and the working efficiency can be reduced. To ensure the best efficiency, the sensors should be cleaned off periodically by brushing any dirt or debris from them. Before cleaning the sensors, ensure the robot is not attached to the charging cable or dock and the power switch is in the off position.

Cleaning the Intake

After repeated use, dirt and dust can accumulate around the intake of the vacuum and the working efficiency can be reduced. To ensure the best efficiency and constant airflow, the intake should be cleaned periodically by removing any debris from the intake or brushroll. Before cleaning the intake ensure the robot is not attached to the charging cable or dock, and the power switch is in the off position.

Troubleshooting

ProblemPossible causes-Remedies
Low or no suctionThe Dust Bin is full. Empty the Dust Bin.
Side brushes do not operate properlyCleaning is required. If side brushes become crooked or dirty, soak them in hot water to return to its original shape. Let them dry completely.
Battery is not chargingPower switch is not in the on position. Flip the switch to the on position and place the robot on the charging base or plug in the power cord directly.
LED display doesn’t light upBattery is not installed correctly.
Very low battery
Power Switch on the Vacuum is turned off. Turn the power switch located by the unit’s charging port is on.
Filter is missing. Check to see if the filter is in place.
Vacuum will not startThe battery is not installed properly.
Battery power is low. Charge the battery.
The top cover is not installed properly. Close the Top Cover and turn vacuum on again.
Doesn’t return to base after cleaningMode not set with Docking LED Icon. Change mode.
Cleaning interrupted by error code or full dust bin.
Manual Cleanings Using Control Panel
Manual Cleanings Using Control Panel

SMARTCLEAN Robotic Vacuum USER GUIDE 1605 SERIES PDF

SMARTCLEAN® Robotic Vacuum USER GUIDE 1974 SERIES PDF
