Siemens thermostat error codes indicate issues affecting the device’s performance. Each code represents a specific type of malfunction, emphasizing the importance of accurate identification. These error codes serve as a guide for users to swiftly identify and address problems.
Codes List
Priorities are assigned to pending errors. From priority 5, alarm messages are delivered, which are used by remote supervision (OCI). From priority 6 the alarm relay will be set.
Basically only mistakes and servicing announcements are listed, which treats in this document . Mistakes can be also brought on LPB by other devices to the announc, wich here are not listed. This can be defined with the setting Announcement of system announcements BZ 6610.
| Error Codes | Meaning |
|---|---|
| 0 | No error |
| 10 | Outside sensor |
| 30 | Flow sensor 1 |
| 32 | Flow sensor 2 |
| 38 | Flow sensor primary controller |
| 50 | DHW sensor 1 |
| 52 | DHW sensor 2 |
| 57 | DHW circulation sensor |
| 60 | Room sensor 1 |
| 65 | Room sensor 2 |
| 68 | Room sensor P |
| 73 | Collector sensor 1 |
| 74 | Collector temperature 2 sensor error |
| 81 | LPB short-circuit/comm |
| 82 | LPB address collision |
| 83 | BSB short-circuit |
| 84 | BSB address collision |
| 85 | Radio communication |
| 98 | extension module 1 |
| 99 | extension module 2 |
| 100 | 2 clock time masters |
| 102 | Clock reserve missing |
| 105 | Service message |
| 117 | Water pressure too high |
| 118 | Water pressure too low |
| 120 | flow alarm |
| 121 | Flow temperature HC1 |
| 122 | Flow temperature HC2 |
| 126 | DHW charging temperature |
| 127 | Legionella temperature |
| 140 | inadmissible bus address or plant type |
| 146 | Sensor/controlling element config |
| 171 | Alarm contact 1 active |
| 172 | Alarm contact 2 active |
| 176 | Water pressure 2 too high |
| 177 | Water pressure 2 too low |
| 178 | Limit thermostat HC1 |
| 179 | Limit thermostat HC2 |
Displays Meaning
Changing the room temperature
The room temperature setpoint can be adjusted with the rotary knob when Comfort mode is active.
Turn the rotary knob clockwise (+) to increase, or counterclockwise (-) to decrease the current room temperature setpoint for Comfort mode.
The setting range is from 5…40 °C (41 … 104 °F), unless limited by parameters P09 and P10 (for parameter settings, see reverse side).
Adjusting the fan speed
Press the fan mode button until the desired fan mode is reached
In Automatic mode , the fan speed is automatically selected by the thermostat depending on the setpoint and the actual room temperature. When the room temperature reaches the setpoint, the fan stops (factory setting) or runs at low speed.
In Manual mode, the fan operates independently and always runs at the same speed: Low / medium / high.
If desired, you can change the fan mode selector option via P03: Manually only, or manually including Protection mode. Use P15 to set the fan speed in dead zone.
Selecting Comfort mode
Press the operating mode button until symbol appears, indicating that Comfort mode is selected.
In Comfort mode, the thermostat maintains the setpoint which can be readjusted with the rotary knob.
Button lock
To lock or unlock the buttons manually, press and hold the fan mode button for 3 seconds. The buttons are locked or unlocked in this manner if P14 is set to 2.
If P14 is set to 1, the thermostat automatically locks the buttons 10 seconds after the last adjustment.

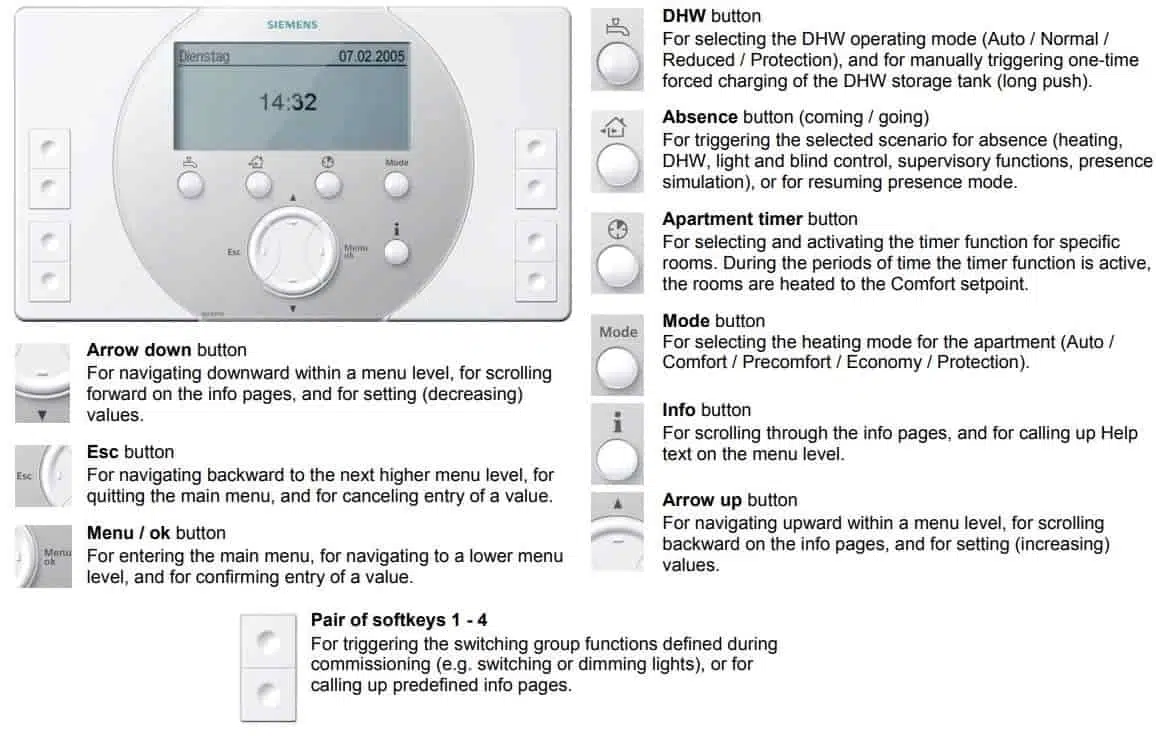

Button Functions
